Door hardware · live inventory

Electric Strikes & Door Hardware — In Stock, Ships Monday, October 19

Every electric strike on this page is in stock in the RSH Warehouse and dispatch Monday, October 19 on business-day orders placed before 3:00 PM Central. We stock HES strikes across the applications integrators actually run into: cavity strikes for cylindrical and mortise locksets, surface-mounted strikes for rim exit devices, and field-selectable models that cover fail-safe or fail-secure from a single SKU.

Door hardware here ships factory-sealed and unopened — commodity hardware doesn't go through our board-level intake process. Every unit is covered by the RSH 1-Year Guarantee: one warranty, one company to call, stated plainly on every product page.

Not sure whether your opening needs fail-safe or fail-secure? Our guide to fail-safe vs. fail-secure electric strikes explains it in plain English — or ask our tech team before you order.

Current stock

Door hardware ready to ship.

HES

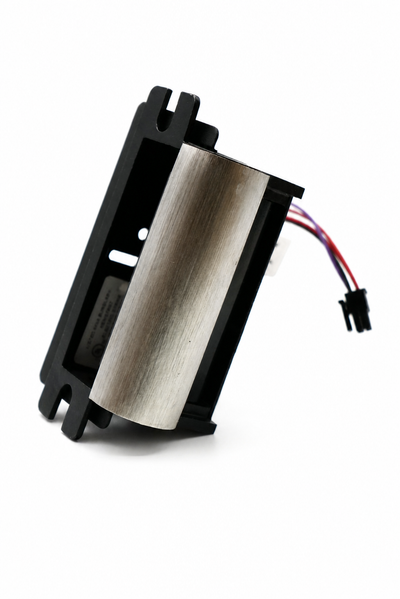

HES 1006CLB-12/24D-630 Complete Electric Strike

$399.99

In Stock

The HES 1006CLB-12/24D-630 is a complete "one-box" electric strike for virtually every latchbolt lock, accommodating every cylindrical and mortise lockset for ANSI 4-7/8" strike plates with up to a 3/4" latchbolt. Each box ships with the 1006 strike body, four faceplates (J, K, KD, and KM), and all necessary mounting hardware, so a single part number covers a wide range of frame and lockset combinations right off the truck. The 1006 series is the flagship of HES electric strikes: its dual interlocking plunger design and heavy-duty stainless steel construction let it exceed every major electric-strike standard, tested beyond 3,000 lbs of static strength, 350 ft-lbs of dynamic strength, and 1,000,000 cycles of operation. This configuration is fail-secure (locked on power loss) and dual-voltage, operating on 12 or 24 VDC continuous duty, with a non-handed design, internally mounted solenoid, plug-in connector, and full keeper shims for horizontal adjustment. Suitable for metal and wood frames. Extensively listed — UL 10C fire-rated (3-hour single / 1-1/2-hour double door), UL 1034 burglary-resistant and outdoor-rated, UL 294 6th Edition, ANSI/BHMA A156.31 Grade 1, and Florida Building Code approved. 630 satin stainless steel finish. Backed by our 1-year hardware guarantee.

HES

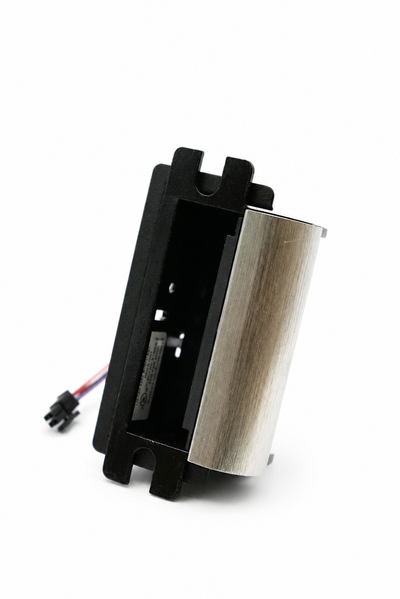

HES 1006CS-12/24D-630 Complete Smart Electric Strike

$399.99

In Stock

The HES 1006CS-630 Smart Strike is the strongest and most versatile electric strike HES makes — a complete "one-box" solution that accommodates any brand of cylindrical or mortise lockset working with an ANSI 4-7/8" strike plate. What sets the CS apart is capability and completeness: it's the only electric strike that can release, recapture, and contain mortise locks with a 1" deadbolt, and it ships with the 1006 strike body plus the SMART Pac III current controller and five faceplates (J, KD, KM, HM, and ND) with brackets, so one part covers virtually any door and lockset combination on the truck. The integrated SMART Pac III regulates current and voltage for reliable, cool, quiet operation across the dual 12/24 VDC input. The 1006 series' dual interlocking plunger design and heavy-duty stainless steel construction let it exceed every major electric-strike standard — tested beyond 3,000 lbs of static strength, 350 ft-lbs of dynamic strength, and 1,000,000 cycles. This configuration is fail-secure (locked on power loss), non-handed, with an internally mounted solenoid, plug-in connector, and full keeper shims for horizontal adjustment. Suitable for metal and wood frames. Extensively listed — UL 10C fire-rated (3-hour single / 1-1/2-hour double door), UL 1034 burglary-resistant and outdoor-rated, UL 294 6th Edition, ANSI/BHMA A156.31 Grade 1, and Florida Building Code approved. 630 satin stainless steel finish. Backed by our 1-year hardware guarantee.

HES

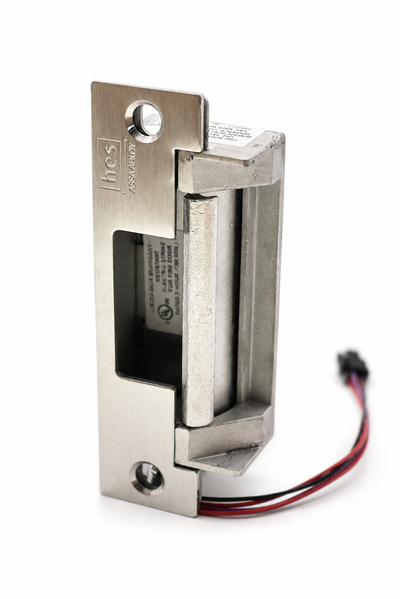

HES 4500C-12/24D-630 Fire-Rated Complete Electric Strike for Mortise or Cylindrical Locks

$399.99

In Stock — Only 1 left

The HES 4500C-630 is a low-profile, heavy-duty, fire-rated "one-box" electric strike for cylindrical and mortise locks. It's designed for installation in 2" UL 10C fire-rated frames while maintaining 1/2" drywall penetration, and its shallow 1-3/8" body depth suits openings with limited space behind the jamb. Strength comes from a unique keeper-pin locking design that lets the 4500C exceed the ratings of the frame, door, and locking hardware despite its compact profile. As a Complete Pac, it ships with the 4500 strike body plus two interchangeable faceplates, one for cylindrical locks and one for mortise locks to accommodate most cylindrical and mortise latchbolts up to 3/4" throw (without deadbolts), so one part covers a range of lockset applications. It is field-selectable between fail-secure and fail-safe operation, runs on dual 12 or 24 V DC, and is non-handed for metal frames, tested to 1,000,000 cycles. Extensively listed — UL 10C 3-hour fire-rated (fail-secure), CAN4-S104 fire-door conformant, UL 1034 burglary-resistant, UL 294, ANSI/BHMA A156.31 Grade 1, NFPA-252, and California State Fire Marshal listed. 630 satin stainless steel finish, made in the USA. Backed by our 1-year hardware guarantee.

HES

HES 1006CLB-F-12/24D-630-LBM Electric Strike with Latchbolt Monitor, Fail Safe, Includes Faceplates (J, K, KD, KM), Satin Stainless Steel

$379.99

In Stock — Only 1 left

The HES 1006CLB is a complete electric strike engineered for virtually every latchbolt lock, accommodating cylindrical and mortise locksets for ANSI 4-7/8" strike plates with up to a 3/4" latchbolt. This LBM version adds a built-in latchbolt monitor, providing a real-time signal of latchbolt position for door status monitoring and integration with your access control or alarm system. Its dual interlocking plunger design and heavy-duty stainless steel construction let the 1006 series exceed every major electric strike standard: 2,500 lbs of static holding strength, 350 ft-lbs of dynamic strength, and factory-tested endurance beyond 1,000,000 cycles. The fail-safe configuration releases the door on power loss for life-safety and egress applications, while dual-voltage 12/24 VDC continuous-duty operation and a non-handed design simplify installation on any opening. The box ships complete with the 1006 strike body, J, K, KD, and KM faceplates in a 630 satin stainless steel finish, plus all mounting hardware. Backed by our 1-year hardware guarantee.

HES

HES 9800-630 Surface-Mounted Low-Profile Electric Strike

$359.99

In Stock — Only 1 left

The HES 9800-630 is a low-profile, surface-mounted electric strike designed to electrify Adams Rite 8700, 8800, and EX88 Series rim exit devices — without cutting the frame. Because all functions are performed within the ½" thick strike body and concealed beneath a sleek satin stainless steel cover, no faceplates are required and the mounting screws stay hidden for a clean, finished appearance. Installation is straightforward: place the strike on the surface of the frame, align it with the Starwheel or Interlock latching mechanism, and mount it — making it an ideal no-cut solution for both retrofits and new construction. Built to exceed ANSI/BHMA A156.31 Grade 1, it delivers 1,500 lbs of static holding force, 70 ft-lb of dynamic impact resistance, and factory-tested endurance beyond 1,000,000 cycles for reliable performance on high-traffic openings. It is field-selectable between fail-secure and fail-safe operation and runs on dual 12 or 24 VDC, so a single part covers both egress and security applications. Outdoor rated, with 1/16" and 1/8" spacer plates included to accommodate varying door gaps. RoHS compliant. Backed by our 1-year hardware guarantee.

HES

HES 9400-BSP Surface Mounted Electric Strike for Rim Exit Devices

$329.99

In Stock — Only 5 left

The HES 9400-BSP is a black suede powder coat, surface-mounted electric strike built for rim exit devices on commercial access-control openings. It mounts to the door frame in front of the strike location, so most retrofits do not require cutting into the frame — useful when adding card-reader-controlled entry to an existing panic-bar or rim-exit installation. The 9400 series supports 12 or 24 VDC operation and is field-selectable for fail-safe or fail-secure operation. Its non-handed design works on left- or right-hand openings, and horizontal adjustment helps installers dial in the door-to-frame gap without re-drilling. Ships from the RSH warehouse the dispatch Monday, October 19 on business-day orders placed before 3 PM CT and is covered by the RSH 1-year guarantee. If you are not sure whether the 9400 series or a deeper-recess strike is right for your exit device, email a photo of the latch and frame to [email protected] and we will help you choose.

HES

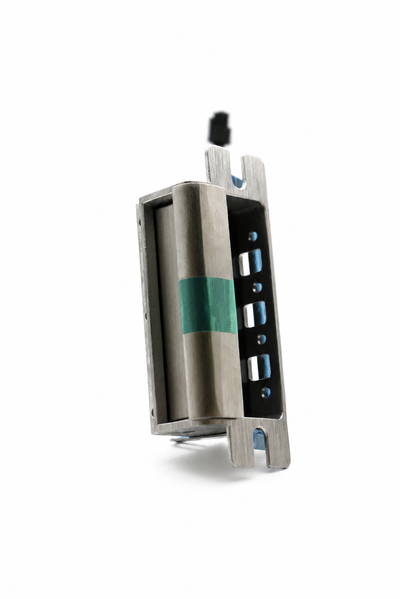

HES 1500C-630 1500 Series Low-Profile Electric Strike with 1LB Faceplate Kit

$314.99

In Stock

The HES 1500C-630 is a heavy-duty, low-profile electric strike for latchbolt locks, accommodating every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate. It ships complete with the 1LB faceplate kit for latchbolts, and its modular platform — with interchangeable faceplates and accessories — makes stocking and installation easier while offering dynamic integrated adjustability and field-configurable options. The 1500 Series sets an aesthetic standard as well: a fully finished design that complements surrounding door hardware and blends into the opening, available in multiple finishes. Built from tamper-resistant stainless steel, it delivers 1,500 lbs of static holding strength and 70 ft-lbs of dynamic strength, tested to 1,000,000 cycles. It is field-selectable between fail-secure and fail-safe operation and runs on dual 12 or 24 V (AC or DC), with a non-handed design for metal and wood frames. 630 satin stainless steel finish. Backed by our 1-year hardware guarantee.

HES

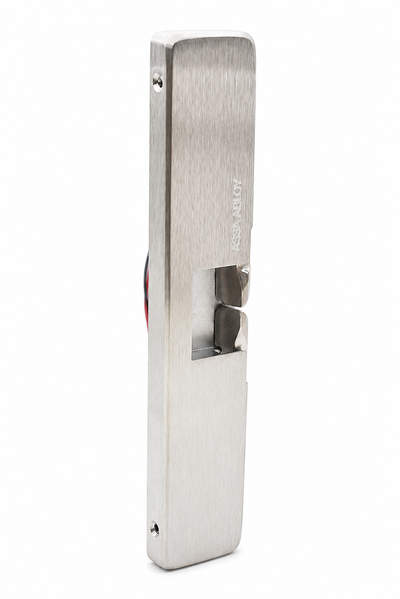

HES 9400-630 Slim-Line Outdoor-Rated Surface-Mount Electric Strike

$314.99

In Stock

The HES 9400-630 is a slim-line, outdoor-rated surface-mounted electric strike designed to electrify rim exit devices with a 1/2" Pullman latch — without cutting the frame. All components are fully encased in a 5/8" thick stainless steel housing, and a smooth decorative cover conceals the mounting screws for a clean, finished appearance. Installation is fast: place the strike on the surface of the frame, align it with the exit latchbolt, and mount it, making it an ideal no-cut solution for retrofits and new construction on both metal and wood frames. A 1/8" spacer plate is included to accommodate varying door gaps. Built to exceed ANSI/BHMA Grade 1 standards, it delivers 1,500 lbs of static holding force and 70 ft-lbs of dynamic strength, tested to 1,000,000 cycles. It is field-selectable for both fail-secure/fail-safe operation and 12 or 24 VDC, so a single part covers a wide range of egress and security applications. Non-handed, tamper-resistant, and 630 satin stainless steel. Backed by our 1-year hardware guarantee.

HES

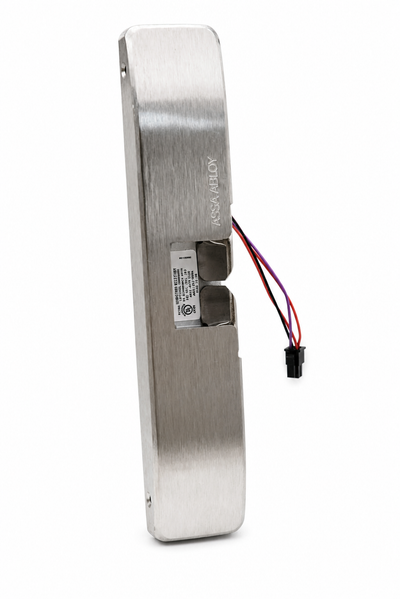

HES 9600-630 Surface Mounted Electric Strike For Rim Exit Devices

$273.99

In Stock

The HES 9600-630 is a windstorm-resistant, surface-mounted electric strike for rim exit devices with up to a 3/4" Pullman latch. Every component is encased in a 3/4" thick stainless steel housing that mounts on the face of the frame with no cutting required — place the strike on the frame surface, align it with the exit latchbolt, and install. The base is separate from the decorative cover, making alignment and adjustments easy, and no faceplates are required. Built to exceed the severe forces of ANSI windstorm testing (ANSI/SDI 250.13, ASTM E330, Florida Building Code approval FL# 14307), it delivers 2,000 lbs of static strength and 120 ft-lbs of dynamic impact resistance — well beyond Grade 1 — with endurance tested to 1,000,000 cycles and an outdoor rating (UL 1034) for exterior openings. Operation is field-selectable between fail-secure and fail-safe and between 12 or 24 VDC (500 mA / 250 mA continuous duty), with built-in horizontal adjustability and a non-handed design for metal or wood frames. 630 satin stainless steel finish. Note: the 9600 is not fire-rated — for fire-rated openings, use the HES 9500. Backed by our 1-year hardware guarantee.

HES

HES 5200C-LBSM Complete Pac Electric Strike Kit with Latchbolt Strike Monitor

$199.99

In Stock

The HES 5200C-LBSM is the fully monitored version of the HES 5200 Complete Pac. It ships as one kit: the 5200 electric strike body, the 501 faceplate for cylindrical locksets in ANSI-prepped metal jambs, the 501A faceplate for cylindrical locksets or spring latches in aluminum frames, the 12 V and 24 V plug-in pigtails, and the trim enhancer. One part number covers metal, wood, and aluminum frames without a second faceplate order. Why LBSM instead of LBM: the LBM version has one switch that reports whether the latchbolt is projected into the keeper. The LBSM adds a second, independent switch on the strike keeper itself, so your access control or alarm panel gets two separate signals: door latched (latchbolt monitor) and strike secured (strike monitor). Specify the LBSM when the system has to prove the opening is actually locked rather than merely closed: high-security doors, doors supervised for forced-entry or held-open alarms, and any door where panel logic needs to tell "latch in" from "keeper locked." If you only need door-closed status, the 5200C-LBM does that for less. Installation: the 5200 series is built around in-frame horizontal adjustability. After the strike is mounted you can move the keeper up to 3/16" toward or away from the door stop to line up with the latchbolt instead of re-cutting the pocket. The body is 1-3/16" deep, non-handed, with an internally mounted solenoid and plug-in connector. It accepts 5/8" to 3/4" throw latchbolts (3/4" with a 1/8" door gap) and uses the standard 4-7/8" ANSI strike preparation with the 501 or 501A faceplate. Fail-safe or fail-secure: the unit ships in fail-secure mode. Converting to fail-safe is a two-screw change on the back of the strike body (loosen, move to the top of the slot, retighten), documented in the HES installation instructions. Electrical: 240 mA at 12 VDC or 120 mA at 24 VDC, continuous duty. 12-16 VAC and 24 VAC are permitted for intermittent duty only (10% maximum duty cycle, 2 minutes maximum on-time), so an AC supply is not suitable for a fail-safe installation. HES specifies a UL 294 Class 2 power-limited supply or a listed access control unit, and recommends inductive-kickback protection (HES 2005M3 SMART Pac III or 2001M bridge rectifier). Both monitor switches are rated 500 mA at 30 V with Common / Normally Open / Normally Closed leads (latchbolt monitor: white / orange / green; strike monitor: brown / blue / yellow). Wire gauge per HES, round trip: 12 VDC uses 18 AWG to 200 ft, 16 AWG to 300 ft, 14 AWG to 400 ft; 24 VDC uses 20 AWG to 200 ft, 18 AWG to 300 ft, 16 AWG to 400 ft. Ratings: ANSI/BHMA A156.31 Grade 1. UL 294 Listed. UL 1034 Burglary-Resistant Listed with 1,500 lbs static strength and 70 ft-lbs dynamic impact. Manufacturer endurance rating 1,000,000 cycles (UL 1034 endurance level 250,000 cycles). RoHS compliant. Per HES, the monitor options were not evaluated under the UL 294 / UL 1034 / ULC-60839-11-1 listings and are designated for indoor use. No fire-rating listing appears on the HES data sheet; confirm with your AHJ before specifying this strike on a fire-rated opening. In the box: 5200 electric strike body (LBSM), 501 faceplate, 501A faceplate, faceplate mounting screws (#12-24 x 1/2"), 12 V and 24 V plug-in pigtails (HES 2007M), trim enhancer with #4-40 screws (HES 5200-105), HES installation instructions. Not included: power supply, lockset, SMART Pac or rectifier, and the 502 / 503 / 504 faceplates (ordered separately for long-plate and wood-frame preps). Does not fit: mortise locks with a deadbolt (see the HES 1006 series), rim exit devices (see HES 9400 / 9600), latchbolts over 3/4" throw, and openings that require a fire-rated strike. New in the unopened HES retail box. Covered by the Rapid Security Hardware 1-Year Guarantee and our 30-day return policy.

HES

HES 5200C-LBM Complete Pac Electric Strike Kit with Latchbolt Monitor

$189.99

In Stock — Only 1 left

The HES 5200C Complete Pac is a cylindrical-lockset electric strike that ships as a complete kit: the 5200 strike body plus the faceplate option kit, so you have the right plate on the truck regardless of frame type. The kit includes the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames — no separate faceplate order, no return trip. The strike's standout feature is in-frame horizontal adjustability, which lets you dial in alignment after the frame is set instead of fighting a fixed strike pocket. It accommodates 5/8" to 3/4" throw latchbolts (3/4" with a 1/8" door gap) in both metal and wood frames, and the shallow 1-3/16" body depth fits applications where deeper strikes won't. This LBM version adds a built-in latchbolt monitor, giving you a real-time signal of latchbolt position for door status monitoring and integration with your access control or alarm system. Per HES, the monitor options were not evaluated under the UL 294 / UL 1034 listings and are designated for indoor use. It is field-selectable between fail-safe and fail-secure and draws 240 mA at 12 VDC or 120 mA at 24 VDC (continuous duty; AC is intermittent duty only), so a single part covers both egress and security applications without restocking. Rated to 1,500 lbs static strength and manufacturer endurance rating 1,000,000 cycles (UL 1034 endurance level 250,000 cycles), with a tamper-resistant, non-handed design, internally mounted solenoid, and plug-in connector. Backed by our 1-year hardware guarantee. Does not fit: mortise locks with a deadbolt (see the HES 1006 series), rim exit devices (see HES 9400 / 9600), latchbolts over 3/4" throw, and openings that require a fire-rated strike.

HES

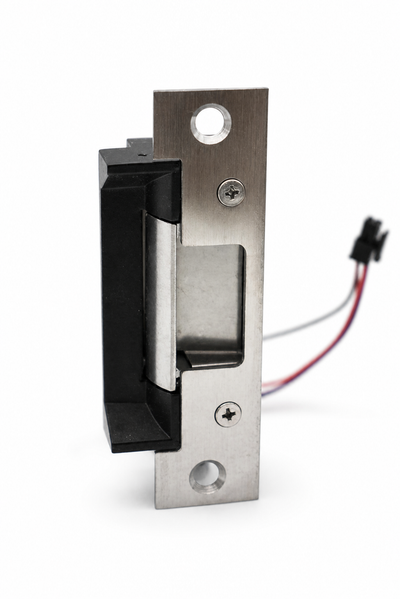

HES 5000C-12/24D-630 Complete Pac Electric Strike for Cylindrical Locks

$129.99

In Stock

The HES 5000C-630 is a compact, high-performance electric strike designed for low-profile openings where there's limited space behind the jamb. Its strength comes from a unique keeper-pin locking design that lets the 5000 exceed the ratings of the frame, door, and locking hardware despite its small footprint. This field-selectable fail-secure/fail-safe unit is easy to install, accommodates cylindrical locksets with latchbolts up to 5/8" throw, and ships as a Complete Pac with both the 501 and 501A faceplates so it fits a range of ANSI metal and aluminum frame applications out of the box. Built from tamper-resistant stainless steel, it delivers 1,500 lbs of static holding strength and 70 ft-lbs of dynamic strength, tested to 1,000,000 cycles. It runs on dual 12 or 24 V (AC or DC), is non-handed, and includes an internally mounted solenoid, plug-in connector, and trim enhancer. Grade 1 rated, UL 1034 burglary-resistant, UL 294 listed, and made in the USA. 630 satin stainless steel finish. Backed by our 1-year hardware guarantee.

HES

HES 5200C-630 Complete Pac Electric Strike Kit with 501 and 501A Faceplates

$128.99

In Stock

The HES 5200C-630 is the HES 5200 Complete Pac: a Grade 1 electric strike for cylindrical locksets that ships as one kit. In the box are the 5200 electric strike body in 630 satin stainless steel, the 501 faceplate for cylindrical locksets in ANSI-prepped metal jambs, the 501A faceplate for cylindrical locksets or spring latches in aluminum frames, the 12 V and 24 V plug-in pigtails, and the trim enhancer. One part number covers metal, wood, and aluminum frames without a second faceplate order or a return trip. HES manufacturer item number 520030404. This is the non-monitored version. If your panel needs a door-latched signal, see the 5200C-LBM (latchbolt monitor); if it must also confirm the strike keeper is locked, see the 5200C-LBSM (latchbolt and strike monitor). Everything else about the three kits is identical. Installation: the 5200 series is built around in-frame horizontal adjustability. After the strike is mounted you can move the keeper up to 3/16" toward or away from the door stop to line up with the latchbolt instead of re-cutting the pocket. The body is 1-3/16" deep, non-handed, tamper resistant, with an internally mounted solenoid and plug-in connector. It accepts 5/8" to 3/4" throw latchbolts (3/4" with a 1/8" door gap) and uses the standard 4-7/8" ANSI strike preparation with the 501 or 501A faceplate. Fail-safe or fail-secure: the unit ships in fail-secure mode. Converting to fail-safe is a two-screw change on the back of the strike body (loosen, move to the top of the slot, retighten), documented in the HES installation instructions. Electrical: 240 mA at 12 VDC or 120 mA at 24 VDC, continuous duty. 12-16 VAC and 24 VAC are permitted for intermittent duty only (10% maximum duty cycle, 2 minutes maximum on-time), so an AC supply is not suitable for a fail-safe installation. HES specifies a UL 294 Class 2 power-limited supply or a listed access control unit, and recommends inductive-kickback protection (HES 2005M3 SMART Pac III or 2001M bridge rectifier). Wire gauge per HES, round trip: 12 VDC uses 18 AWG to 200 ft, 16 AWG to 300 ft, 14 AWG to 400 ft; 24 VDC uses 20 AWG to 200 ft, 18 AWG to 300 ft, 16 AWG to 400 ft. Ratings: ANSI/BHMA A156.31 Grade 1. UL 294 Listed. UL 1034 Burglary-Resistant Listed and suitable for outdoor use, with 1,500 lbs static strength and 70 ft-lbs dynamic impact. Manufacturer endurance rating 1,000,000 cycles (UL 1034 endurance level 250,000 cycles). RoHS compliant. No fire-rating listing appears on the HES data sheet; confirm with your AHJ before specifying this strike on a fire-rated opening. In the box: 5200 electric strike body (630 finish), 501 faceplate, 501A faceplate, faceplate mounting screws (#12-24 x 1/2"), 12 V and 24 V plug-in pigtails (HES 2007M), trim enhancer with #4-40 screws (HES 5200-105), HES installation instructions. Not included: power supply, lockset, SMART Pac or rectifier, and the 502 / 503 / 504 faceplates (ordered separately for long-plate and wood-frame preps). Does not fit: mortise locks with a deadbolt (see the HES 1006 series), rim exit devices (see HES 9400 / 9600), latchbolts over 3/4" throw, and openings that require a fire-rated strike. New in the unopened HES retail box. Covered by the Rapid Security Hardware 1-Year Guarantee and our 30-day return policy. Orders placed now ship Monday, October 19.
