Specifications.

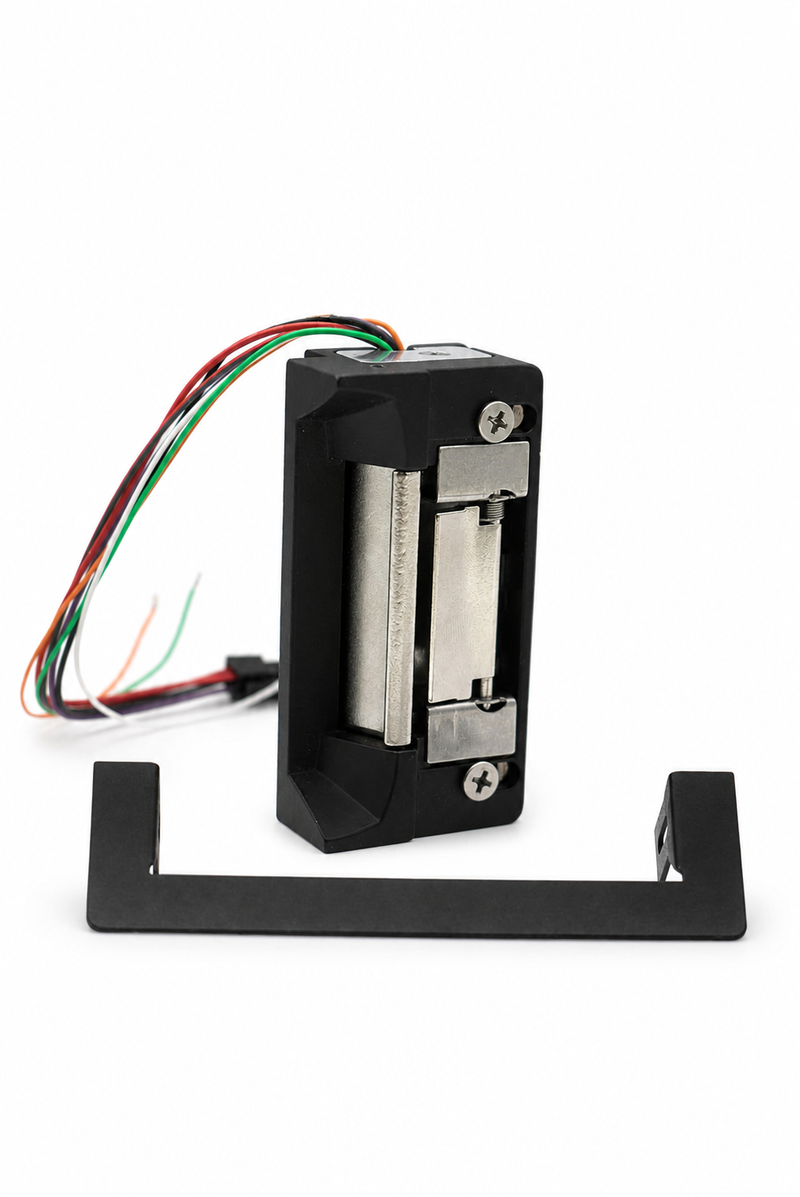

The HES 5200C Complete Pac is a cylindrical-lockset electric strike that ships as a complete kit: the 5200 strike body plus the faceplate option kit, so you have the right plate on the truck regardless of frame type. The kit includes the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames — no separate faceplate order, no return trip. The strike's standout feature is in-frame horizontal adjustability, which lets you dial in alignment after the frame is set instead of fighting a fixed strike pocket. It accommodates 5/8" to 3/4" throw latchbolts (3/4" with a 1/8" door gap) in both metal and wood frames, and the shallow 1-3/16" body depth fits applications where deeper strikes won't. This LBM version adds a built-in latchbolt monitor, giving you a real-time signal of latchbolt position for door status monitoring and integration with your access control or alarm system. Per HES, the monitor options were not evaluated under the UL 294 / UL 1034 listings and are designated for indoor use. It is field-selectable between fail-safe and fail-secure and draws 240 mA at 12 VDC or 120 mA at 24 VDC (continuous duty; AC is intermittent duty only), so a single part covers both egress and security applications without restocking. Rated to 1,500 lbs static strength and manufacturer endurance rating 1,000,000 cycles (UL 1034 endurance level 250,000 cycles), with a tamper-resistant, non-handed design, internally mounted solenoid, and plug-in connector. Backed by our 1-year hardware guarantee. Does not fit: mortise locks with a deadbolt (see the HES 1006 series), rim exit devices (see HES 9400 / 9600), latchbolts over 3/4" throw, and openings that require a fire-rated strike.
Sources: HES model-specific datasheet (PDF)
- Complete Pac — includes the faceplate option kit with both 501 (ANSI metal jamb) and 501A (aluminum frame) faceplates
- In-frame horizontal adjustability for fast, forgiving alignment during install
- Built-in latchbolt monitor (LBM) for real-time door status signaling
- Field-selectable fail safe or fail secure — one part covers both applications
- 12 or 24 VDC continuous duty: 240 mA at 12 V, 120 mA at 24 V (AC intermittent duty only); plug-in connector
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- metal (501), wood (501), aluminum (501A)
- Lock hardware
- cylindrical latchbolt 5/8 to 3/4 inch (3/4 inch with 1/8 inch door gap); spring latch with 501A faceplate
- Fail mode
- field-selectable fail-safe/fail-secure; ships fail-secure
- Voltage
- 12 or 24 VDC continuous duty (240 mA / 120 mA); 12-16 / 24 VAC intermittent only
- Monitoring
- latchbolt monitor (LBM)
- Included faceplates
- 501, 501A
- Prep
- 4-7/8-inch ANSI preparation with 501 or 501A faceplate
- Manufacturer
- HES
- Model
- 5200C-12/24D-LBM
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- Same-day dispatch · flat $30 overnight CONUS
- MPN
- 5200C-12/24D-LBM
- UPC
- 740090043500
- Weight
- 1 lb
- Origin
- Genuine
Product reviews.
5200C-630, 5200C-LBM, or 5200C-LBSM?
