Specifications.

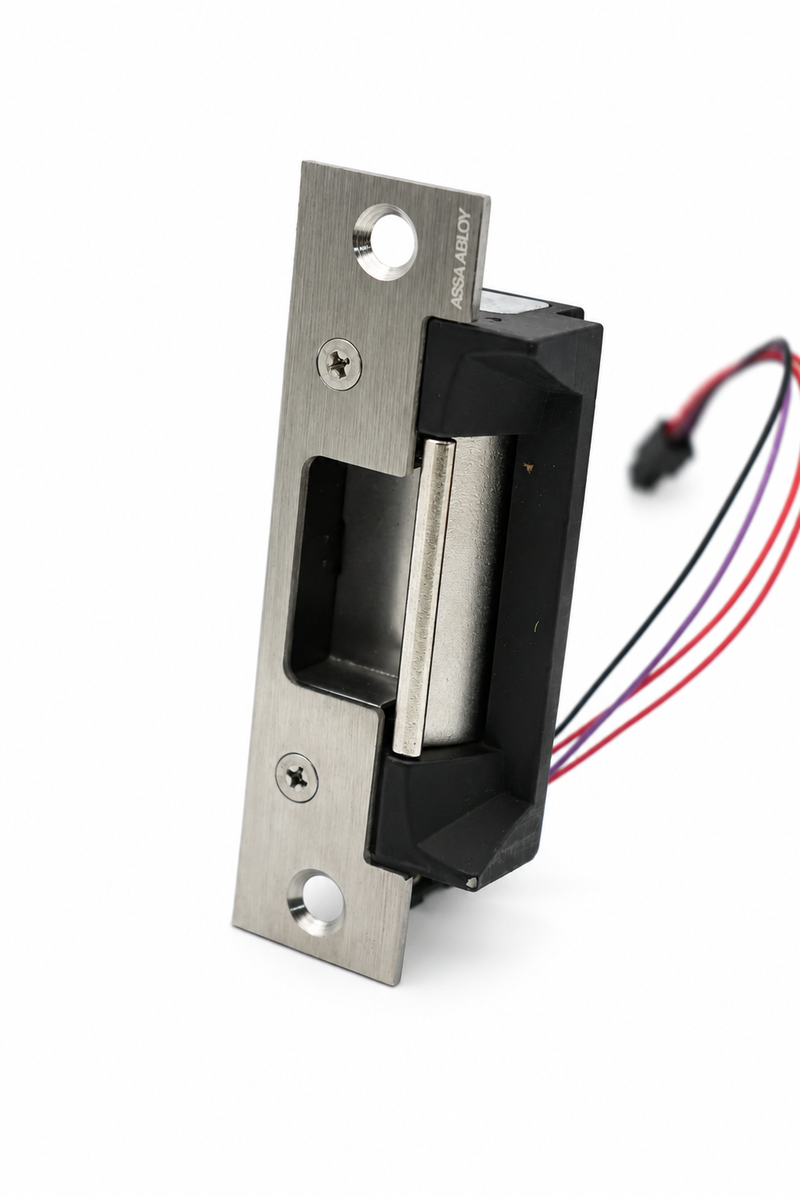

The HES 5200C-630 is the HES 5200 Complete Pac: a Grade 1 electric strike for cylindrical locksets that ships as one kit. In the box are the 5200 electric strike body in 630 satin stainless steel, the 501 faceplate for cylindrical locksets in ANSI-prepped metal jambs, the 501A faceplate for cylindrical locksets or spring latches in aluminum frames, the 12 V and 24 V plug-in pigtails, and the trim enhancer. One part number covers metal, wood, and aluminum frames without a second faceplate order or a return trip. HES manufacturer item number 520030404. This is the non-monitored version. If your panel needs a door-latched signal, see the 5200C-LBM (latchbolt monitor); if it must also confirm the strike keeper is locked, see the 5200C-LBSM (latchbolt and strike monitor). Everything else about the three kits is identical. Installation: the 5200 series is built around in-frame horizontal adjustability. After the strike is mounted you can move the keeper up to 3/16" toward or away from the door stop to line up with the latchbolt instead of re-cutting the pocket. The body is 1-3/16" deep, non-handed, tamper resistant, with an internally mounted solenoid and plug-in connector. It accepts 5/8" to 3/4" throw latchbolts (3/4" with a 1/8" door gap) and uses the standard 4-7/8" ANSI strike preparation with the 501 or 501A faceplate. Fail-safe or fail-secure: the unit ships in fail-secure mode. Converting to fail-safe is a two-screw change on the back of the strike body (loosen, move to the top of the slot, retighten), documented in the HES installation instructions. Electrical: 240 mA at 12 VDC or 120 mA at 24 VDC, continuous duty. 12-16 VAC and 24 VAC are permitted for intermittent duty only (10% maximum duty cycle, 2 minutes maximum on-time), so an AC supply is not suitable for a fail-safe installation. HES specifies a UL 294 Class 2 power-limited supply or a listed access control unit, and recommends inductive-kickback protection (HES 2005M3 SMART Pac III or 2001M bridge rectifier). Wire gauge per HES, round trip: 12 VDC uses 18 AWG to 200 ft, 16 AWG to 300 ft, 14 AWG to 400 ft; 24 VDC uses 20 AWG to 200 ft, 18 AWG to 300 ft, 16 AWG to 400 ft. Ratings: ANSI/BHMA A156.31 Grade 1. UL 294 Listed. UL 1034 Burglary-Resistant Listed and suitable for outdoor use, with 1,500 lbs static strength and 70 ft-lbs dynamic impact. Manufacturer endurance rating 1,000,000 cycles (UL 1034 endurance level 250,000 cycles). RoHS compliant. No fire-rating listing appears on the HES data sheet; confirm with your AHJ before specifying this strike on a fire-rated opening. In the box: 5200 electric strike body (630 finish), 501 faceplate, 501A faceplate, faceplate mounting screws (#12-24 x 1/2"), 12 V and 24 V plug-in pigtails (HES 2007M), trim enhancer with #4-40 screws (HES 5200-105), HES installation instructions. Not included: power supply, lockset, SMART Pac or rectifier, and the 502 / 503 / 504 faceplates (ordered separately for long-plate and wood-frame preps). Does not fit: mortise locks with a deadbolt (see the HES 1006 series), rim exit devices (see HES 9400 / 9600), latchbolts over 3/4" throw, and openings that require a fire-rated strike. New in the unopened HES retail box. Covered by the Rapid Security Hardware 1-Year Guarantee and our 30-day return policy. Orders placed now ship Monday, October 19.
Sources: HES model-specific datasheet (PDF)
- Complete Pac: 501 (ANSI metal) and 501A (aluminum) faceplates, both pigtails, and trim enhancer included
- ANSI/BHMA A156.31 Grade 1; UL 294 and UL 1034 listed; 1,500 lbs static, 70 ft-lbs dynamic; suitable for outdoor use
- Field-selectable fail-safe / fail-secure; ships fail-secure, two-screw conversion
- 12 or 24 VDC continuous duty: 240 mA at 12 V, 120 mA at 24 V (AC intermittent duty only)
- In-frame horizontal adjustment up to 3/16" after installation; 1-3/16" body depth; non-handed
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- metal (501), wood (501), aluminum (501A)
- Lock hardware
- cylindrical latchbolt 5/8 to 3/4 inch (3/4 inch with 1/8 inch door gap); spring latch with 501A faceplate
- Fail mode
- field-selectable fail-safe/fail-secure; ships fail-secure
- Voltage
- 12 or 24 VDC continuous duty (240 mA / 120 mA); 12-16 / 24 VAC intermittent only
- Monitoring
- none (see 5200C-LBM / 5200C-LBSM)
- Included faceplates
- 501, 501A
- Prep
- 4-7/8-inch ANSI preparation with 501 or 501A faceplate
- Manufacturer
- HES
- Model
- 5200C-12/24D-630
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- dispatch Monday, October 19 · flat $30 overnight CONUS
- MPN
- 5200C-12/24D-630
- UPC
- 740090043432
- Weight
- 1 lb
- Origin
- Genuine
Product reviews.
5200C-630, 5200C-LBM, or 5200C-LBSM?
All three kits share the same Grade 1 strike body, the same 501 and 501A faceplates, and the same 12 or 24 VDC electrical. The 5200C-630 has no monitoring and is the right choice when the door is simply released by a reader, keypad, or intercom. The LBM adds a latchbolt-position switch for door-status monitoring. The LBSM adds a second switch on the strike keeper so the panel can confirm the strike is locked, not just that the door is closed.
