Specifications.

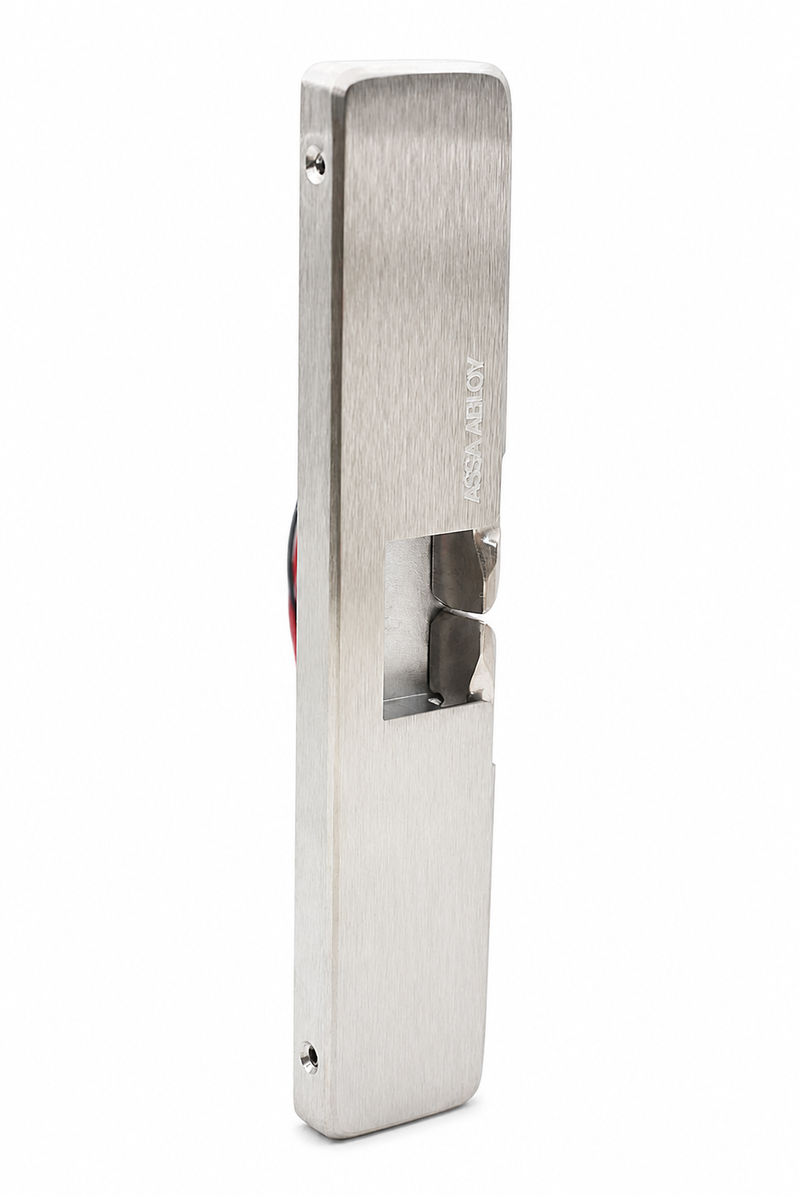

The HES 9400-630 is a slim-line, outdoor-rated surface-mounted electric strike designed to electrify rim exit devices with a 1/2" Pullman latch — without cutting the frame. All components are fully encased in a 5/8" thick stainless steel housing, and a smooth decorative cover conceals the mounting screws for a clean, finished appearance. Installation is fast: place the strike on the surface of the frame, align it with the exit latchbolt, and mount it, making it an ideal no-cut solution for retrofits and new construction on both metal and wood frames. A 1/8" spacer plate is included to accommodate varying door gaps. Built to exceed ANSI/BHMA Grade 1 standards, it delivers 1,500 lbs of static holding force and 70 ft-lbs of dynamic strength, tested to 1,000,000 cycles. It is field-selectable for both fail-secure/fail-safe operation and 12 or 24 VDC, so a single part covers a wide range of egress and security applications. Non-handed, tamper-resistant, and 630 satin stainless steel. Backed by our 1-year hardware guarantee.
Sources: HES model-specific datasheet (PDF)
- Slim-line, outdoor-rated surface-mount electric strike for rim exit devices (1/2" Pullman latch)
- No-cut installation — mounts on the frame surface for fast retrofit or new construction
- Fully encased 5/8" stainless steel housing with smooth decorative cover
- Field-selectable fail-secure or fail-safe operation
- Field-selectable 12V or 24V DC
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- metal, wood
- Lock hardware
- rim exit device with Pullman latch up to 1/2 inch
- Fail mode
- field-selectable fail-safe/fail-secure
- Voltage
- 12/24 VDC
- Monitoring
- none
- Prep
- surface mounted; no frame cutting required
- Manufacturer
- HES
- Model
- 9400-630
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- dispatch Monday, October 19 · flat $30 overnight CONUS
- MPN
- 9400-630
- UPC
- 740090010397
- Weight
- 2 lb
- Origin
- Genuine
