Specifications.

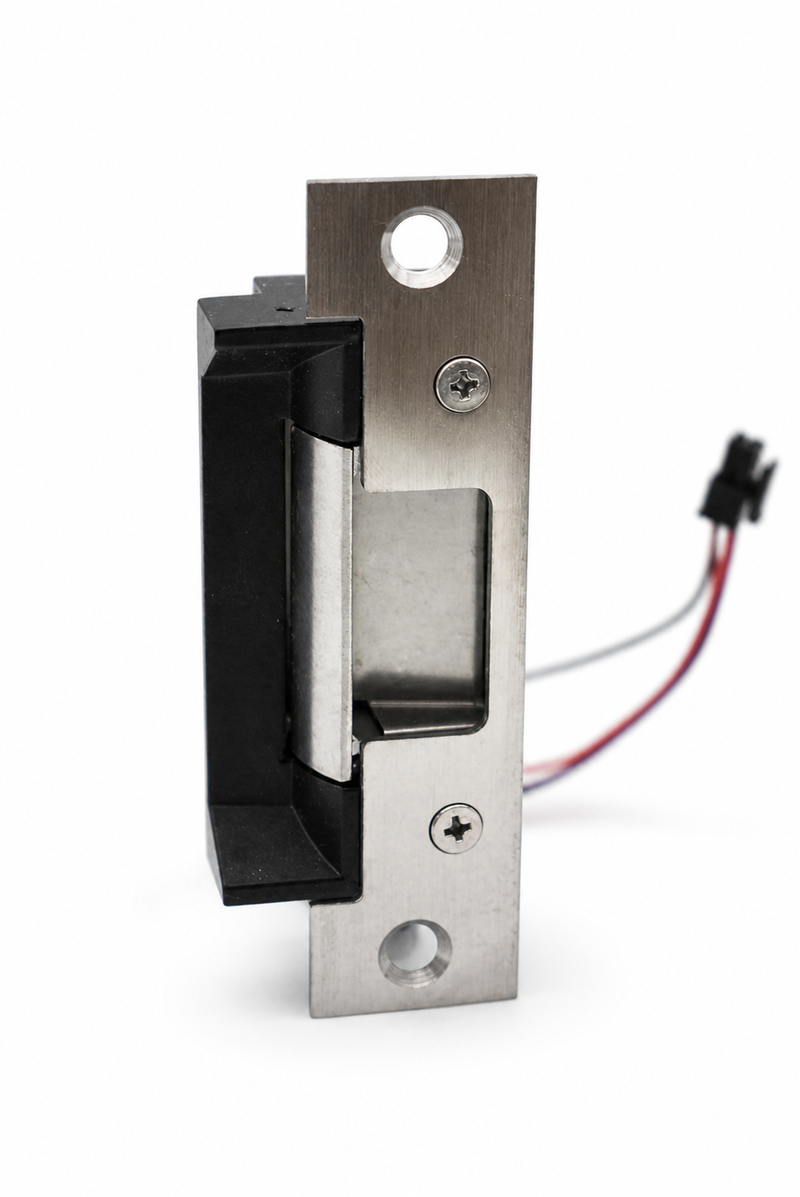

The HES 5000C-630 is a compact, high-performance electric strike designed for low-profile openings where there's limited space behind the jamb. Its strength comes from a unique keeper-pin locking design that lets the 5000 exceed the ratings of the frame, door, and locking hardware despite its small footprint. This field-selectable fail-secure/fail-safe unit is easy to install, accommodates cylindrical locksets with latchbolts up to 5/8" throw, and ships as a Complete Pac with both the 501 and 501A faceplates so it fits a range of ANSI metal and aluminum frame applications out of the box. Built from tamper-resistant stainless steel, it delivers 1,500 lbs of static holding strength and 70 ft-lbs of dynamic strength, tested to 1,000,000 cycles. It runs on dual 12 or 24 V (AC or DC), is non-handed, and includes an internally mounted solenoid, plug-in connector, and trim enhancer. Grade 1 rated, UL 1034 burglary-resistant, UL 294 listed, and made in the USA. 630 satin stainless steel finish. Backed by our 1-year hardware guarantee.
Sources: HES model-specific datasheet (PDF)
- Compact, low-profile electric strike for cylindrical locks (latchbolt up to 5/8" throw)
- Complete Pac — includes both 501 and 501A faceplates for metal and aluminum frames
- Field-selectable fail-secure or fail-safe operation
- Dual voltage 12V or 24V DC
- Unique keeper-pin locking design: 1,500 lbs static / 70 ft-lbs dynamic
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- metal, wood, aluminum with included 501A faceplate
- Lock hardware
- cylindrical latchbolt 1/2 to 5/8 inch; spring latch with 501A faceplate
- Fail mode
- field-selectable fail-safe/fail-secure
- Voltage
- 12/24 VDC/VAC
- Monitoring
- none
- Included faceplates
- 501, 501A
- Prep
- 4-7/8-inch ANSI preparation with 501 or 501A faceplate
- Manufacturer
- HES
- Model
- 5000C-630
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- dispatch Monday, October 19 · flat $30 overnight CONUS
- MPN
- 5000C-630
- UPC
- 740090040042
- Weight
- 2 lb
- Origin
- Genuine
