Specifications.

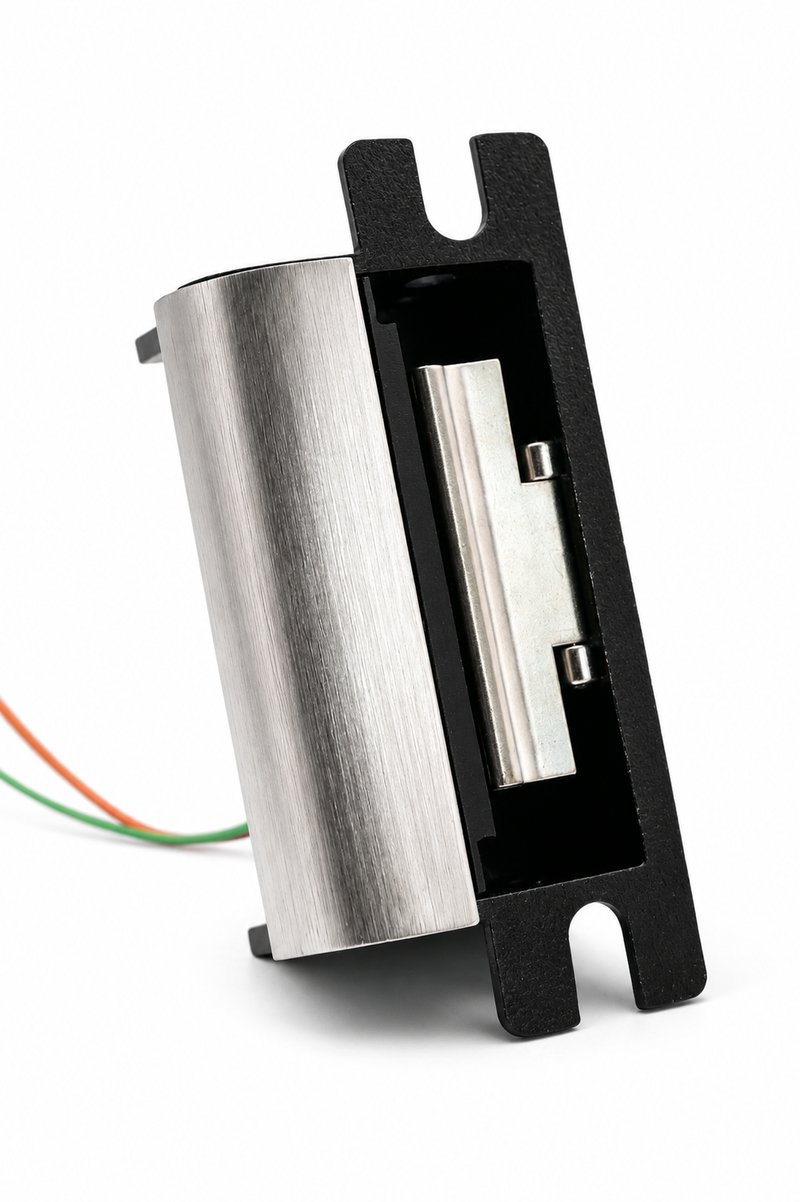

The HES 1006CLB is a complete electric strike engineered for virtually every latchbolt lock, accommodating cylindrical and mortise locksets for ANSI 4-7/8" strike plates with up to a 3/4" latchbolt. This LBM version adds a built-in latchbolt monitor, providing a real-time signal of latchbolt position for door status monitoring and integration with your access control or alarm system. Its dual interlocking plunger design and heavy-duty stainless steel construction let the 1006 series exceed every major electric strike standard: 2,500 lbs of static holding strength, 350 ft-lbs of dynamic strength, and factory-tested endurance beyond 1,000,000 cycles. The fail-safe configuration releases the door on power loss for life-safety and egress applications, while dual-voltage 12/24 VDC continuous-duty operation and a non-handed design simplify installation on any opening. The box ships complete with the 1006 strike body, J, K, KD, and KM faceplates in a 630 satin stainless steel finish, plus all mounting hardware. Backed by our 1-year hardware guarantee.
Sources: HES model-specific datasheet (PDF)
- Complete electric strike for cylindrical, mortise, and latchbolt locks (ANSI 4-7/8", up to 3/4" latchbolt)
- Built-in latchbolt monitor (LBM) for real-time door status signaling
- Fail-safe operation — unlocks on power loss for egress and life-safety
- Dual voltage: 12 or 24 VDC, continuous duty, non-handed
- Heavy-duty 630 satin stainless steel, tamper-resistant construction
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- metal, wood
- Lock hardware
- cylindrical latchbolt up to 3/4 inch; mortise latchbolt up to 3/4 inch
- Fail mode
- fail-safe
- Voltage
- 12/24 VDC
- Monitoring
- latchbolt monitor (LBM)
- Included faceplates
- J, K, KD, KM
- Prep
- ANSI 4-7/8-inch strike preparation
- Manufacturer
- HES
- Model
- 1006CLB-F-12/24D-630-LBM
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- dispatch Monday, October 19 · flat $30 overnight CONUS
- MPN
- 1006CLB-F-12/24D-630-LBM
- UPC
- 740090041780
- Weight
- 2 lb
- Origin
- Genuine
