Specifications.

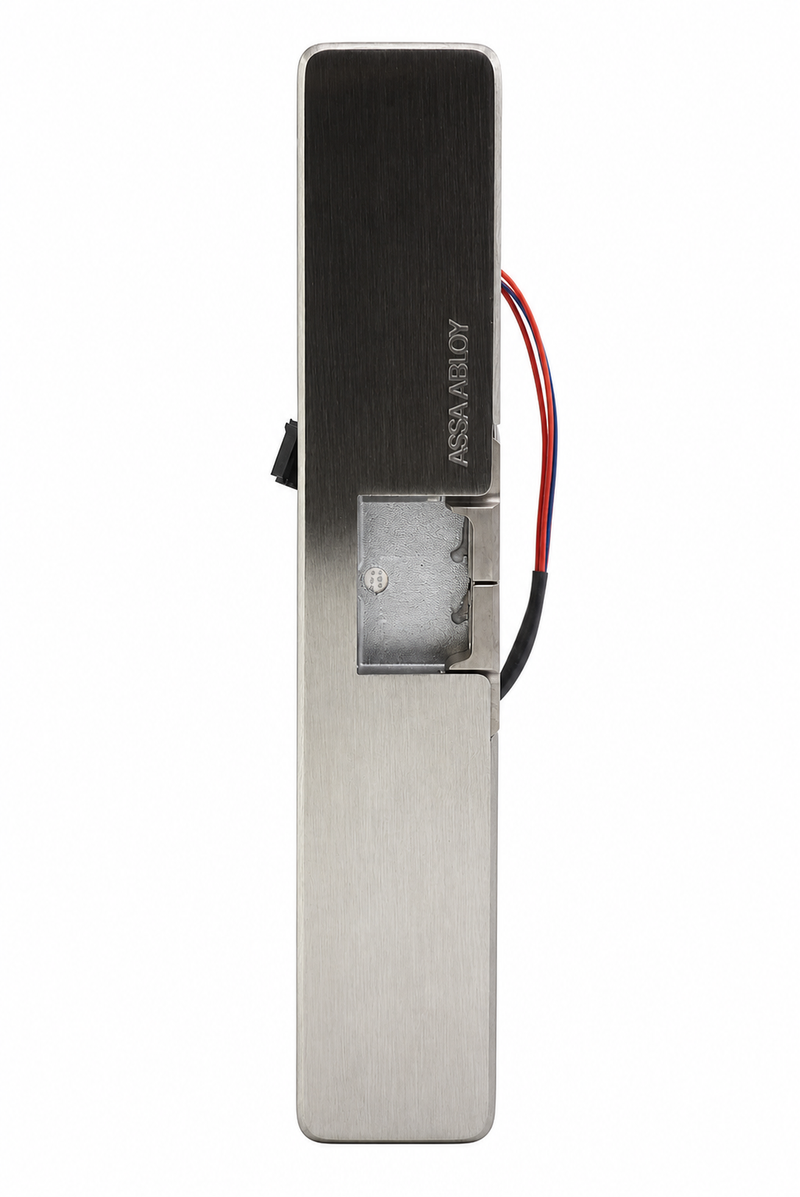

The HES 9800-630 is a low-profile, surface-mounted electric strike designed to electrify Adams Rite 8700, 8800, and EX88 Series rim exit devices — without cutting the frame. Because all functions are performed within the ½" thick strike body and concealed beneath a sleek satin stainless steel cover, no faceplates are required and the mounting screws stay hidden for a clean, finished appearance. Installation is straightforward: place the strike on the surface of the frame, align it with the Starwheel or Interlock latching mechanism, and mount it — making it an ideal no-cut solution for both retrofits and new construction. Built to exceed ANSI/BHMA A156.31 Grade 1, it delivers 1,500 lbs of static holding force, 70 ft-lb of dynamic impact resistance, and factory-tested endurance beyond 1,000,000 cycles for reliable performance on high-traffic openings. It is field-selectable between fail-secure and fail-safe operation and runs on dual 12 or 24 VDC, so a single part covers both egress and security applications. Outdoor rated, with 1/16" and 1/8" spacer plates included to accommodate varying door gaps. RoHS compliant. Backed by our 1-year hardware guarantee.
Sources: HES model-specific datasheet (PDF)
- Surface-mounted, low-profile electric strike for Adams Rite 8700, 8800 & EX88 rim exit devices
- No-cut installation — mounts on the frame surface for fast retrofit or new construction
- No faceplates required — self-contained ½" body with concealed satin stainless cover
- Field-selectable fail secure or fail safe — one part covers both applications
- Dual voltage 12 or 24 VDC
What It Fits
Match the opening, lock hardware, and electrical requirements before ordering.
- Frame
- aluminum, hollow metal, wood
- Lock hardware
- Adams Rite 8700 rim exit device; Adams Rite 8800 rim exit device; Adams Rite EX88 rim exit device
- Fail mode
- field-selectable fail-safe/fail-secure
- Voltage
- 12/24 VDC
- Monitoring
- none
- Prep
- surface mounted; no frame cutting required
- Manufacturer
- HES
- Model
- 9800-630
- Category
- Door Hardware
- Condition
- New · Sealed
- Warranty
- 1 year
- Shipping
- dispatch Monday, October 19 · flat $30 overnight CONUS
- MPN
- 9800-630
- UPC
- 740090025544
- Weight
- 3 lb
- Origin
- Genuine
