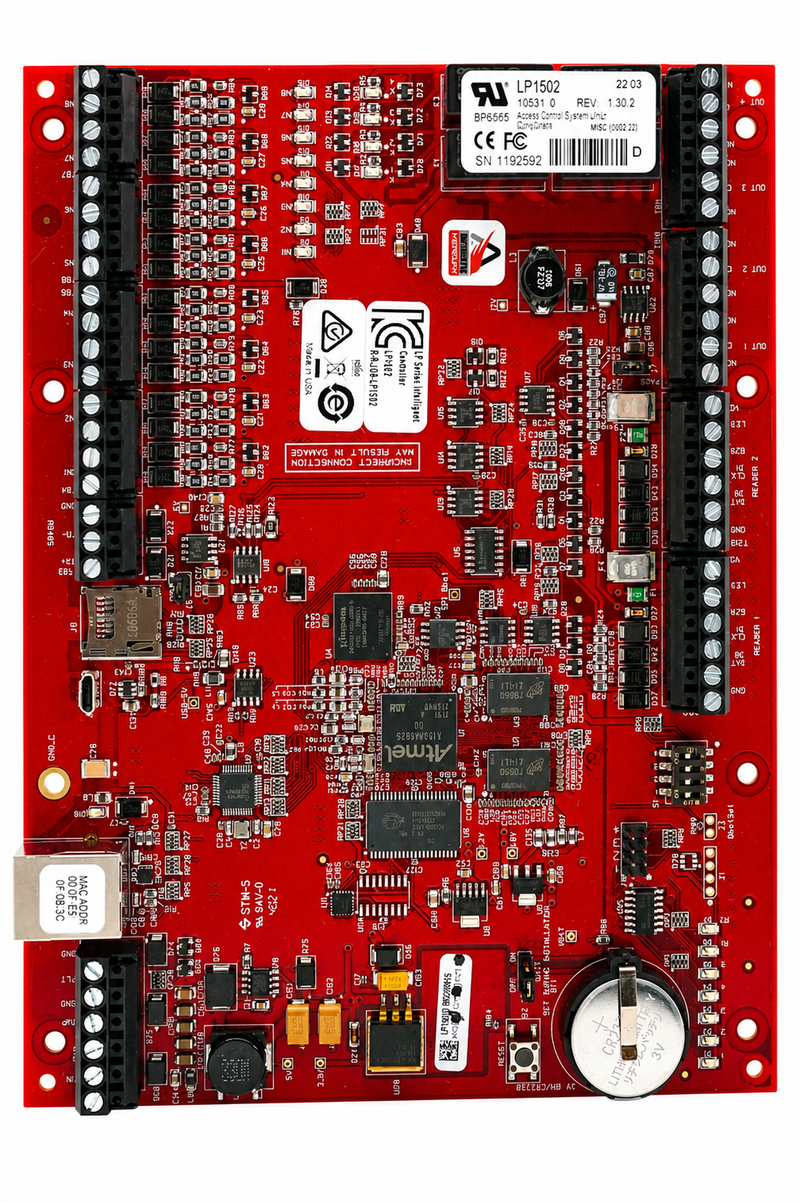

Avigilon Alta LP1502 2-Door Intelligent Controller — Used, Tested

MPN: AC-MER-CONT-LP1502

Used: fully function-tested before shipping. We visually inspect the board, load the approved firmware for the listed platform when applicable, power it at rated input, verify applicable inputs, outputs, relays, and communications on a test fixture, complete the documented burn-in procedure, and record the serial number before packing. The Avigilon Alta LP1502 is a 2-door intelligent controller built on the HID Mercury LP1502 platform and configured for Avigilon Alta Access (formerly Openpath), serving as the processing core of an Avigilon Alta access control deployment. As the IP-to-the-door controller, it makes access decisions, buffers events, and runs scheduled operations on board, so doors keep functioning even if the connection to the host is lost. It natively supports 2–4 readers for two doors and expands to 64 doors/openings via RS-485 downstream panels, with 8 supervised inputs and 4 Form-C relay outputs on board. Reader support spans OSDP, Wiegand, and clock-and-data signaling, and OSDP Secure Channel with an embedded crypto memory chip and data-at-rest encryption keeps reader communication and stored data protected. Host communication is over on-board 10/100 Ethernet (or Micro-USB with an optional adapter), with a 240,000-cardholder capacity. Powered by a simple 12–24 VDC input. Backed by our 1-year hardware guarantee.
